A Dig Dug comes, fixed, goes…

So I picked up a Dig Dug arcade machine I found one of the arcade message boards I hang out on… after a 3 hour drive I picked it up and brought it back home after another 3 hour drive. Brought it into the garage and started inspecting it, apparently Atari did not have the greatest ¬†power supply and audio amplifier designs, although in all fairness it was the early 80’s… Anyhow, I know its unorthodox but after messing with the original Atari power supply/audio board I decided the best course of action would be to scrap the whole thing and roll my own…

It only needs 5V and a small audio amp, so I put in a small 5V open frame SMPS and built an small audio amplifier on some perfboard… end result was this…

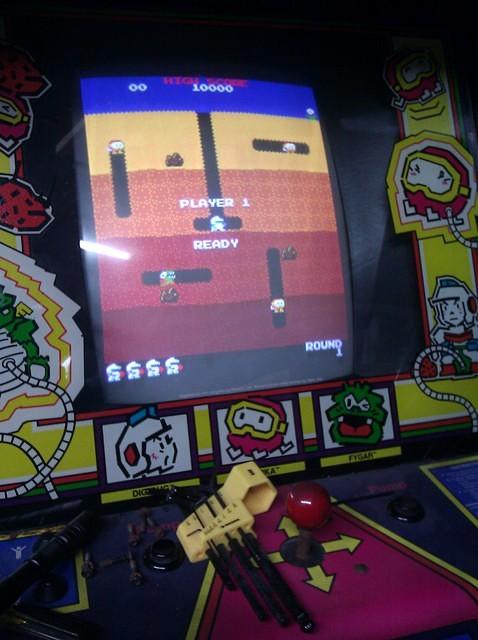

Dig Dug is alive!

So I am not a huge arcade guy, I bought this as a gift for my mom, she loves Dig Dug and was beyond excited when I showed it to her…

Either way its always nice restoring/repairing an original machine, and there is something special about dedicated machines from the golden age of the arcade
